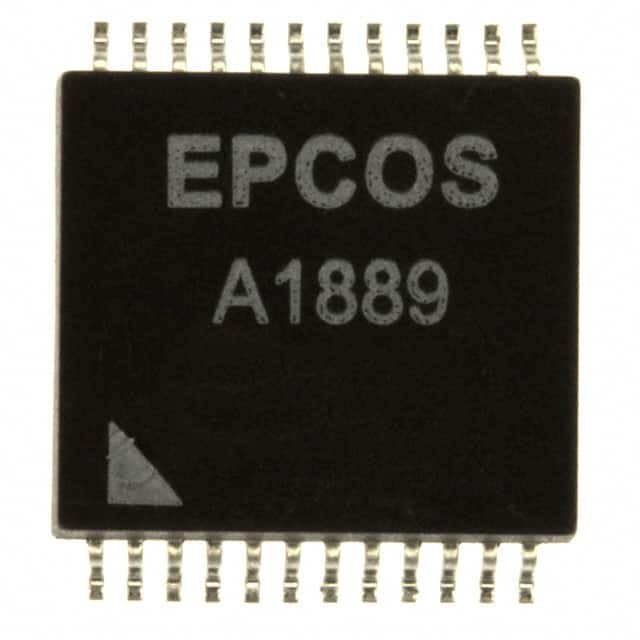

B78476A1889A3

SKU: 157553

Manufacturer: EPCOS (TDK)

Telecom Transformer 1CT:1CT 24 Terminal Gull Wing SMD Automotive

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Transformer Type	10/100Base-T Magnetics Module Transformer
High Potential	1500VAC
Minimum Crosstalk (dB)	-31@100MHz
Minimum CMRR (dB)	-33@100MHz
Minimum Return Loss (dB)	-12@60MHz to 80MHz
Maximum Insertion Loss (dB)	-1.2@0.1MHz to 100MHz
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	24
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Length (mm)	13.64
Depth (mm)	14.99
