B59774B115A70

SKU: 15998

Manufacturer: EPCOS (TDK)

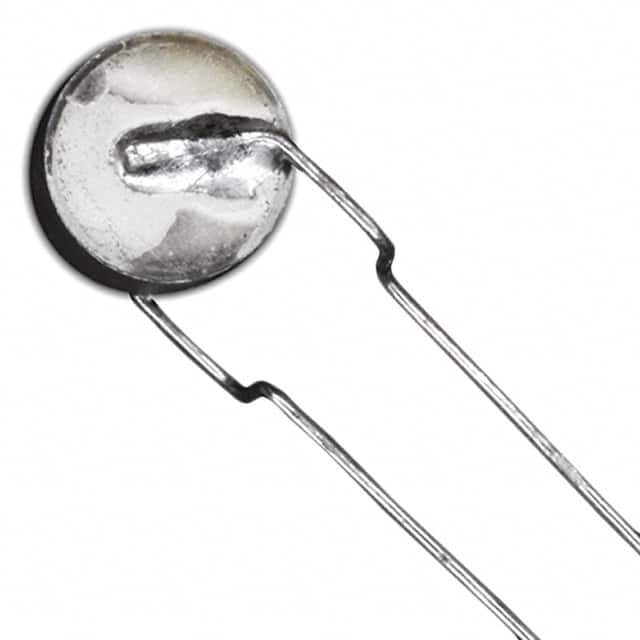

Thermistor PTC 1.1K Ohm 25% 2-Pin Radial Strip

2170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8533.21.00.10
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PTC
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Voltage Rating-Max	550V
Resistance @ 25C (Ohm)	1100
Resistance Range @ 25C (Ohm)	300 to 1500
Percentage of Resistance Tolerance @ 25C (%)	±25
Percentage of Resistance Tolerance Range @ 25C (%)	±25 to ±30
Application	Over Current Protection
Terminal Pitch (mm)	5
Seated Plane Height (mm)	12(Max)
Packing Method	Strip
Product Diameter (mm)	8.5(Max)
Depth (mm)	7(Max)
Construction	Radial
