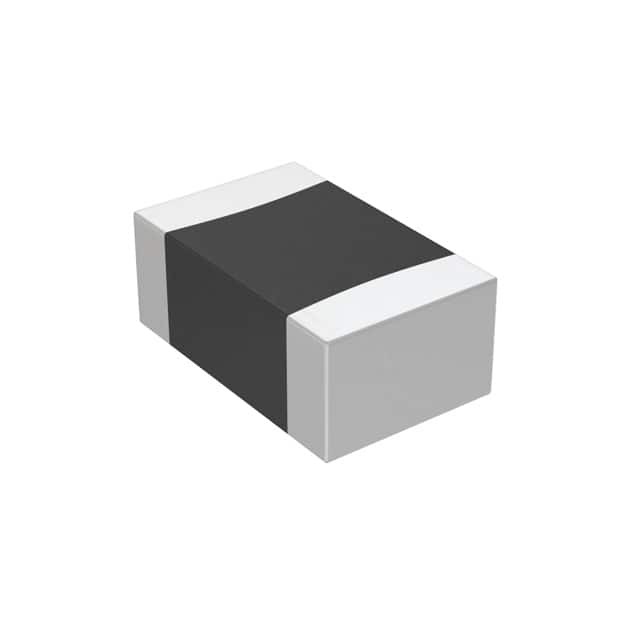

B57421V2103H62

SKU: 122088

Manufacturer: EPCOS (TDK)

Thermistor NTC 10K Ohm 3% 2-Pin 0805 Surface Mount Solder Pad 4000K >= -3.5 T/R

2610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	NTC
Number of Terminals	2
Thermal Coefficient Range	>= -3.5
Thermal Coefficient	4.4%/K
Thermal Time Constant (s)	10
Thermal Time Constant Range (s)	5 to 15
Sensitivity Index (K)	4000
Sensitivity Index Range (K)	3850 to 4100
Accuracy	±3%
Operating Temperature-Min	-55
Operating Temperature-Max	125
Resistance @ 25C (Ohm)	10000
Resistance Range @ 25C (Ohm)	6000 to 25000
Percentage of Resistance Tolerance @ 25C (%)	±3
Percentage of Resistance Tolerance Range @ 25C (%)	±2 to ±5
Maximum Power Rating (W)	210m
Application	Temperature Measurement
Packing Method	Tape and Reel
Length (mm)	2
Depth (mm)	1.25
Height (mm)	1.3(Max)
Construction	Solder Pad
