SMCJ6.5CA

SKU: 35705

Manufacturer: EIC Semiconductor

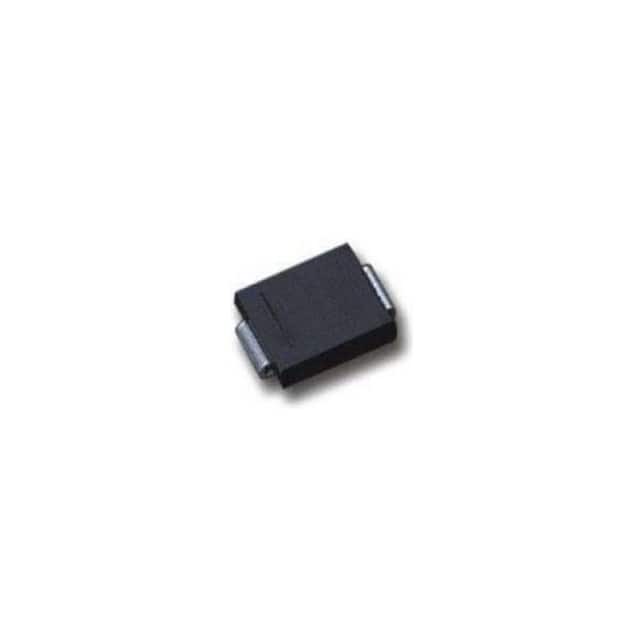

TVS Diode Single Bi-Dir 6.5V 1.5KW 2-Pin SMC

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	7.22
Maximum Clamping Voltage (V)	11.2
Maximum Reverse Stand-Off Voltage (V)	6.5
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	200
Maximum Peak Pulse Current (A)	133.9
Maximum Reverse Leakage Current (uA)	500
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SMC
Pin Count	2
Terminal Form	Surface Mount
Package Height	2.2
Package Length	7
Package Width	5.8
