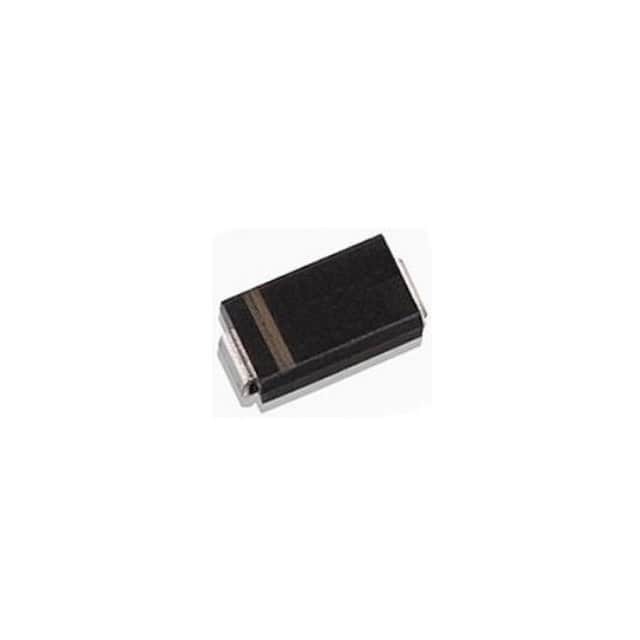

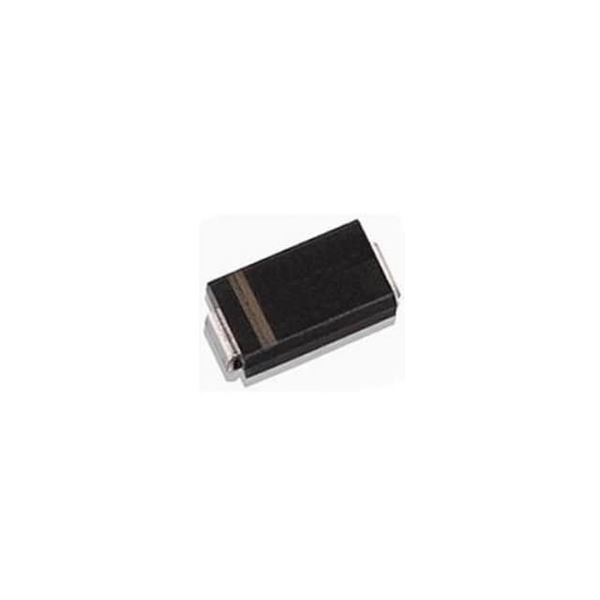

SMAJ6.5

SKU: 148903

Manufacturer: EIC Semiconductor

TVS Diode Single Uni-Dir 6.5V 400W 2-Pin SMA

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	7.22
Maximum Clamping Voltage (V)	12.3
Maximum Reverse Stand-Off Voltage (V)	6.5
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	40
Maximum Peak Pulse Current (A)	32.5
Maximum Reverse Leakage Current (uA)	500
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	400(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Length	4.5
Package Width	2.6
PCB changed	2
