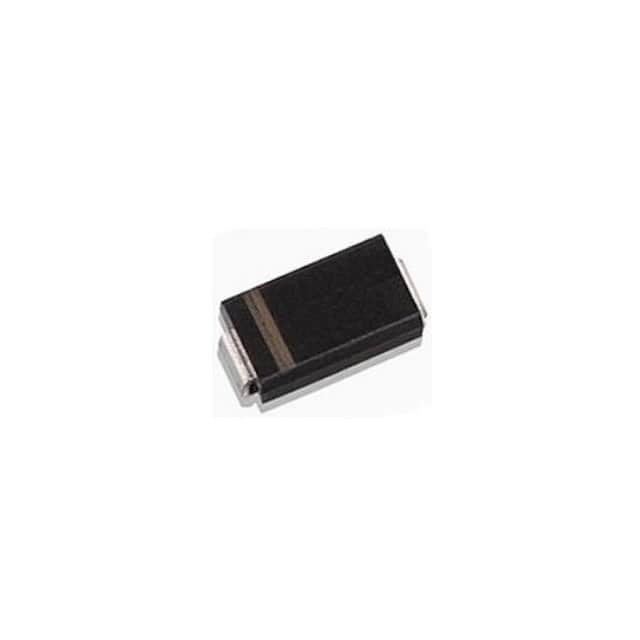

SMAJ5.0A

SKU: 28582

Manufacturer: EIC Semiconductor

TVS Diode Single Uni-Dir 5V 400W 2-Pin SMA T/R

65550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.4
Maximum Clamping Voltage (V)	9.2
Maximum Reverse Stand-Off Voltage (V)	5
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	40
Maximum Peak Pulse Current (A)	43.5
Maximum Reverse Leakage Current (uA)	800
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	400(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Length	4.5
Package Width	2.6
PCB changed	2
