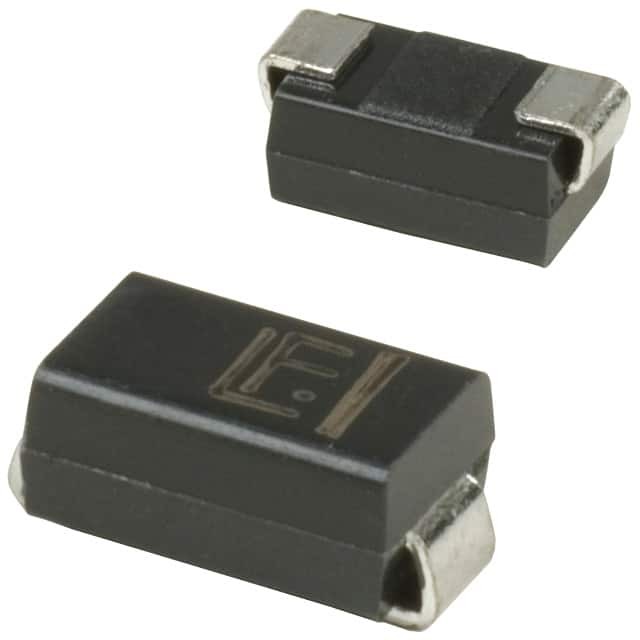

SMAJ130

SKU: 99251

Manufacturer: EIC Semiconductor

TVS Diode Single Uni-Dir 130V 400W 2-Pin SMA

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	144
Maximum Clamping Voltage (V)	231
Maximum Reverse Stand-Off Voltage (V)	130
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	40
Maximum Peak Pulse Current (A)	1.3
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	400(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Length	4.5
Package Width	2.6
PCB changed	2
