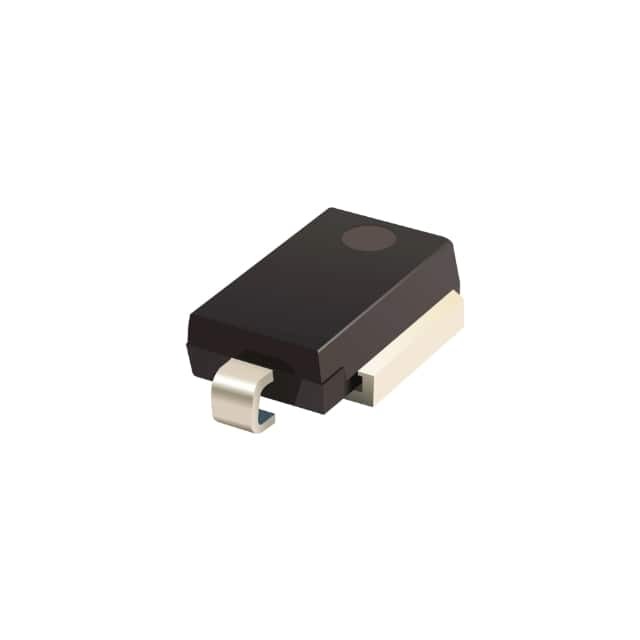

SM8S22A

SKU: 49916

Manufacturer: EIC Semiconductor

TVS Diode Single Uni-Dir 22V 6.6KW 3-Pin(2+Tab) D2PAK

480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	24.4
Maximum Clamping Voltage (V)	35.5
Maximum Reverse Stand-Off Voltage (V)	22
Maximum Forward Voltage (V)	1.8
Peak Forward Surge Current (A)	700
Maximum Peak Pulse Current (A)	168
Maximum Reverse Leakage Current (uA)	10
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	6600
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.8(Max)
Package Length	10.4(Max)
Package Width	9.1(Max)
PCB changed	2
