SA15A

SKU: 94483

Manufacturer: EIC Semiconductor

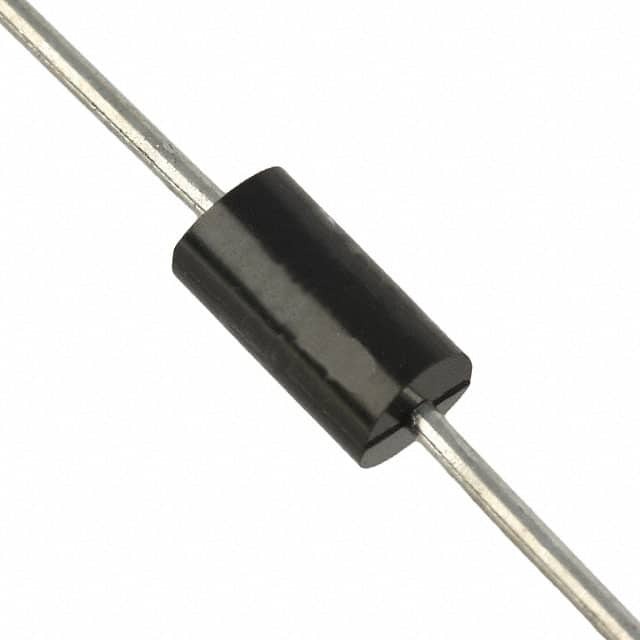

TVS Diode Single Uni-Dir 15V 500W 2-Pin DO-41

52780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	16.7
Maximum Clamping Voltage (V)	24.4
Maximum Reverse Stand-Off Voltage (V)	15
Maximum Peak Pulse Current (A)	20.6
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	500(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	175
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.74(Max)
Terminal Form	Through Hole
Package Length	5.2(Max)
PCB changed	2
