MR752

SKU: 126784

Manufacturer: EIC Semiconductor

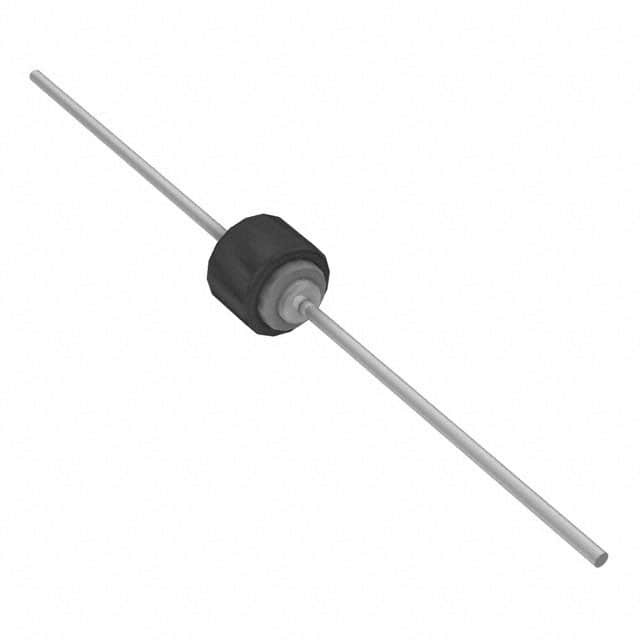

Rectifier Diode 200V 22A Automotive 2-Pin Case D-6

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Maximum DC Reverse Voltage (V)	200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	22
Peak Non-Repetitive Surge Current (A)	400
Peak Forward Voltage (V)	0.9@6A
Peak Reverse Current (uA)	25
Operating Temperature-Min	-65
Operating Temperature-Max	175
Original Package	Case D-6
Pin Count	2
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
PCB changed	2
