FR601

SKU: 79818

Manufacturer: EIC Semiconductor

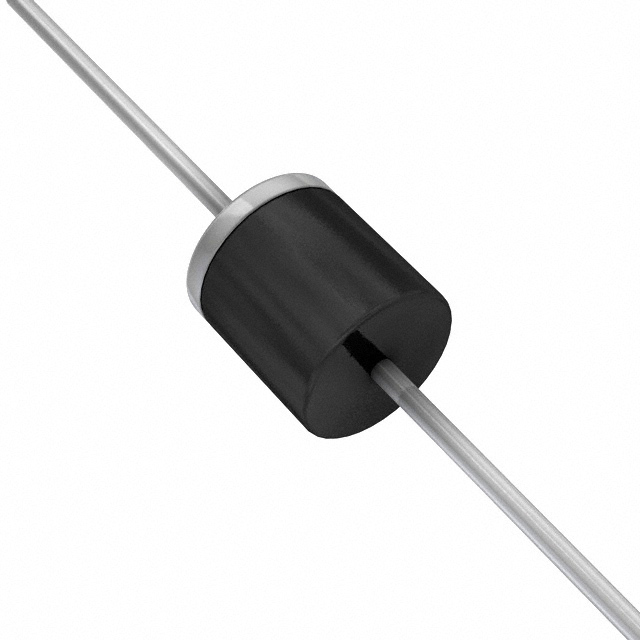

Rectifier Diode Switching 50V 6A 150ns 2-Pin Case D-6

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	50
Configuration	Single
Peak Reverse Repetitive Voltage (V)	50
Maximum Continuous Forward Current (A)	6
Peak Non-Repetitive Surge Current (A)	300
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	150
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	Case D-6
Pin Count	2
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
PCB changed	2
