BZW06-273B

SKU: 122121

Manufacturer: EIC Semiconductor

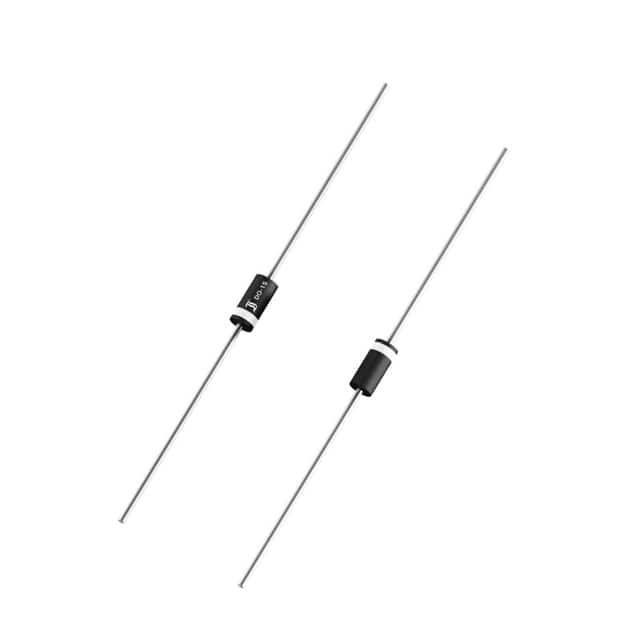

TVS Diode Single Bi-Dir 273V 600W 2-Pin DO-15

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	304
Maximum Clamping Voltage (V)	436
Maximum Reverse Stand-Off Voltage (V)	273
Maximum Peak Pulse Current (A)	1.6
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600(Min)
Capacitance Value (pF)	140(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	175
Original Package	DO-15
Pin Count	2
Diameter	3.6(Max)
Terminal Form	Through Hole
Package Length	7.6(Max)
