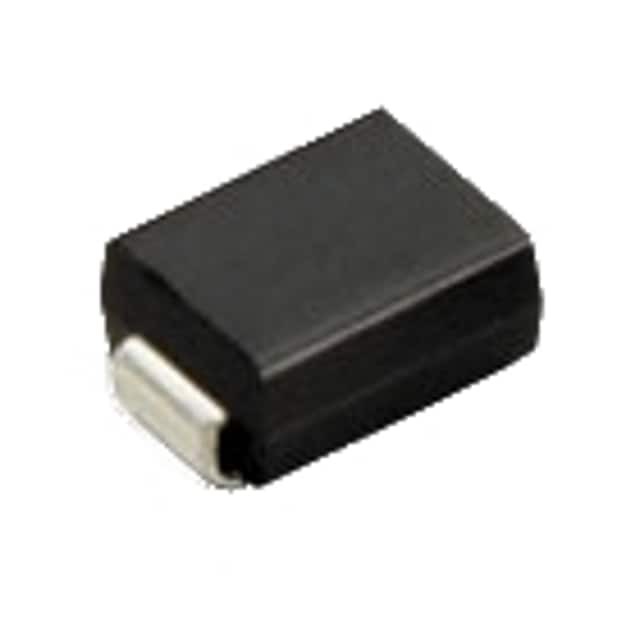

1SMB5951B

SKU: 121763

Manufacturer: EIC Semiconductor

Zener Diode Single 120V 5% 380Ohm 3000mW 2-Pin SMB

1940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	120
Zener Voltage Tolerance	5%
Maximum Forward Voltage (V)	1.5
Maximum Power Dissipation (mW)	3000
Test Current (mA)	3.1
Maximum Reverse Leakage Current (uA)	1
Maximum Regulator Current (mA)	12
Maximum Zener Impedance (Ohm)	380
Maximum Power Dissipation @ 25C (mW)	550
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Length	4.8
Package Width	3.6
PCB changed	2
