1N5342B

SKU: 7239

Manufacturer: EIC Semiconductor

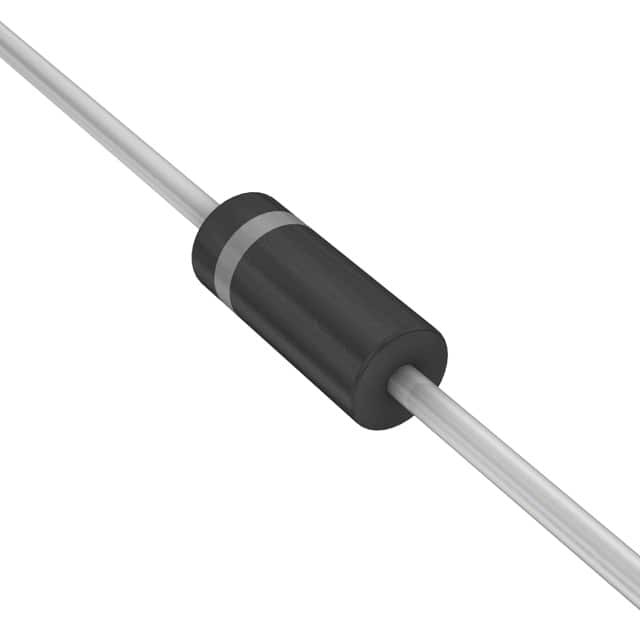

Zener Diode Single 6.8V 5% 1Ohm 5000mW 2-Pin DO-15

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	6.8
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	5000
Test Current (mA)	175
Maximum Reverse Leakage Current (uA)	10
Maximum Regulator Current (mA)	700
Maximum Zener Impedance (Ohm)	1
Operating Temperature-Min	-65
Operating Temperature-Max	200
Original Package	DO-15
Pin Count	2
Standard Package Method	DO-204-AC
Diameter	3.6(Max)
Terminal Form	Through Hole
Package Length	7.6(Max)
PCB changed	2
