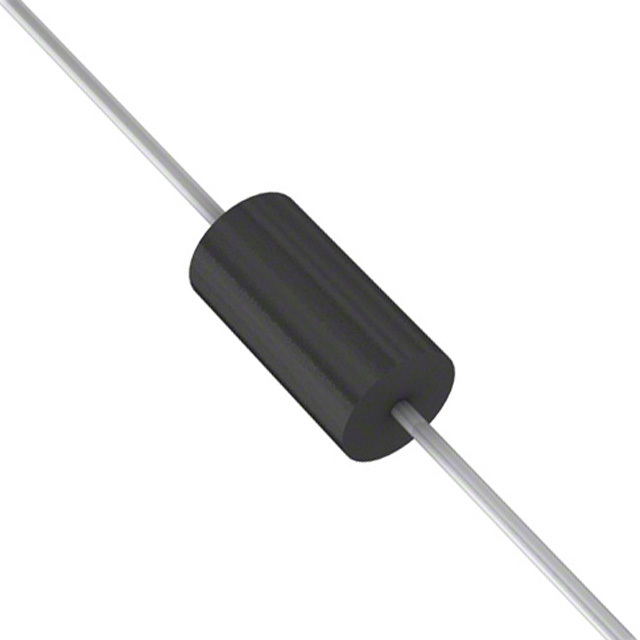

1.5KE120A

SKU: 6822

Manufacturer: EIC Semiconductor

TVS Diode Single Uni-Dir 102V 1.5KW 2-Pin DO-201

9450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	114
Maximum Clamping Voltage (V)	165
Maximum Reverse Stand-Off Voltage (V)	102
Maximum Peak Pulse Current (A)	9.1
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	175
Original Package	DO-201
Pin Count	2
Standard Package Method	DO-201
Diameter	5.33(Max)
Terminal Form	Through Hole
Package Length	9.53(Max)
