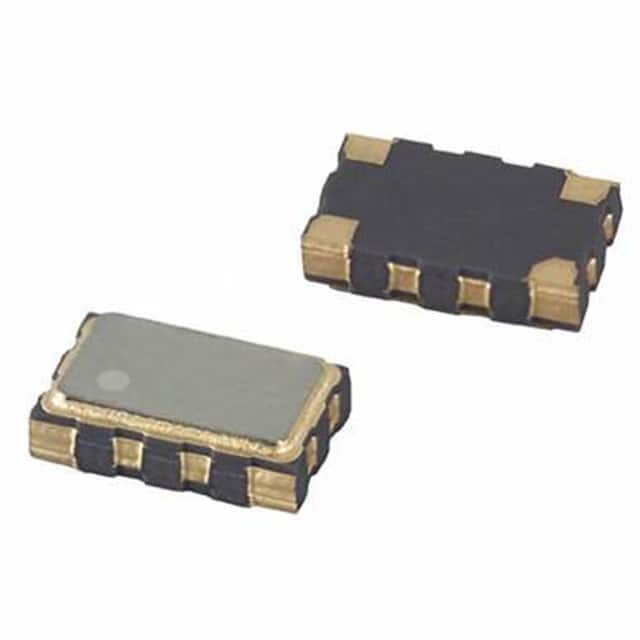

ECS-TXO-5032-147.4-TR

SKU: 58740

Manufacturer: ECS Inc International

Oscillator TCXO 14.7456MHz ±1.5ppm (Tol) ±2.5ppm (Stability) 15pF HCMOS 60% 3.3V 4-Pin SMD T/R

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	Temperature Compensated Crystal Oscillator (TCXO)
Upper Frequency (MHz)	14.7456
Center Frequency (MHz)	14.7456
Output Frequency (MHz)	14.7456
Frequency Aging	±1ppm/Year
Typical Phase Noise (dBc/Hz)	-135(Max)@1KHz
Frequency Tolerance	±1.5ppm
Frequency Stability	±2.5ppm
Load Capacitance (pF)	15
Maximum Symmetry (%)	60
Output Level	HCMOS
Operating Supply Voltage-Min (V)	3.135
Operating Supply Voltage-Max (V)	3.465
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	6
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5
Package Width	3.2
