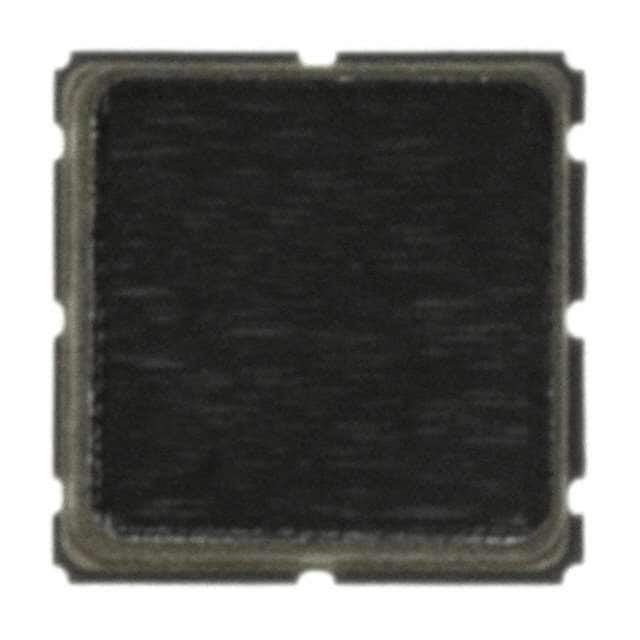

ECS-38SMF45A15 ECS Inc International

ECS-38SMF45A15

SKU: 157774

Manufacturer: ECS Inc International

Crystal Filter Monolithic 45MHz 2dB 560Ohm//6pF SMD 8Pin T/R

Download sample

Request Free Samples

1280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Monolithic
Center Frequency	45MHz
Maximum Insertion Loss (dB)	2
Pass Band Ripple (dB)	0.5
Attenuation (dB)	60(Min)
Number of Poles	2
Terminal Form	Surface Mount
Number of Terminals	8
Operating Temperature-Min	-30
Operating Temperature-Max	80
Packing Method	Tape and Reel
Length (mm)	3.8
Depth (mm)	3.8
