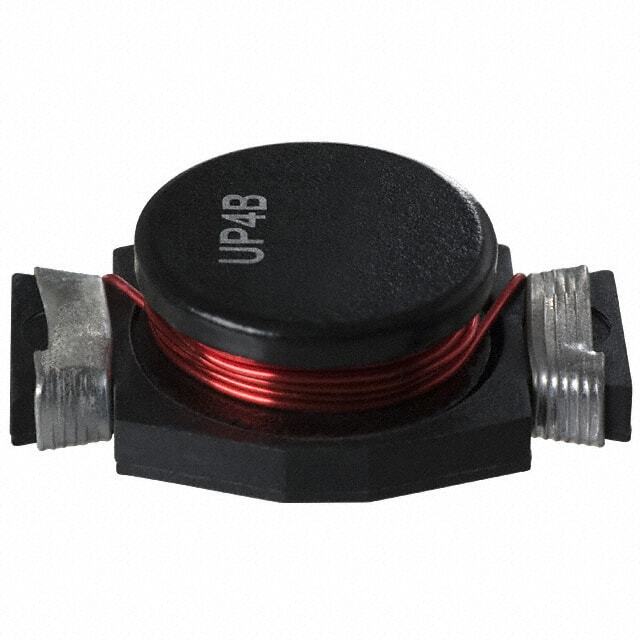

UP4B-470-R

SKU: 71974

Manufacturer: Eaton

Inductor Power Wirewound 48.1uH/47uH 20% 100KHz Ferrite 3.1A 0.074Ohm DCR T/R

2120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	48.1u(OCL)/47u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	3.1
Maximum Saturation Current (A)	5.2
Maximum DC Resistance (Ohm)	0.074
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	22.1
Terminal Form	Surface Mount
Depth (mm)	15
