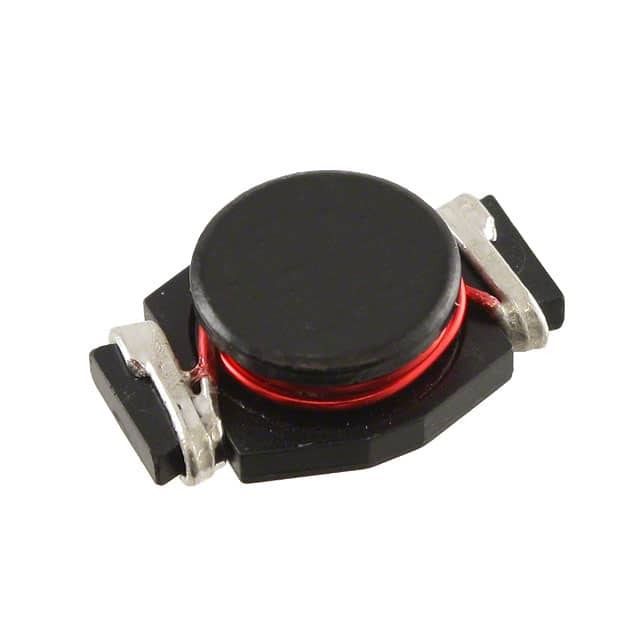

UP4B-100-R

SKU: 142816

Manufacturer: Eaton

Inductor Power Wirewound 9.77uH/10uH 20% 100KHz Ferrite 6.8A 0.015Ohm DCR T/R

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	9.77u(OCL)/10u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	6.8
Maximum Saturation Current (A)	11.5
Maximum DC Resistance (Ohm)	0.015
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	22.1
Terminal Form	Surface Mount
Depth (mm)	15
