TR/3216TD12-R

SKU: 100099

Manufacturer: Eaton

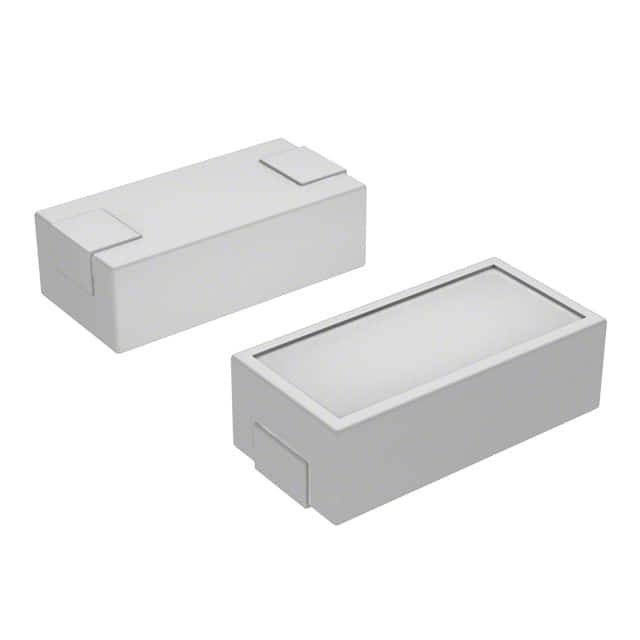

Fuse Chip Slow Blow Acting 12A 32V SMD Solder Pad 1206 T/R

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Chip
Acting	Slow Blow
Fuse Size (mm)	3.2 X 1.6 X 1
Current Rating (A)	12
Voltage Rating (V)	32
Maximum AC Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	32
Breaking Capacity @ Rated Voltage (A)	35@32VDC
Typical Melting I2t (A²S)	45.56
Typical Cold Resistance (Ohm)	0.00425
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	1.6
Length (mm)	3.2
Height (mm)	1
Terminal Form	Surface Mount
