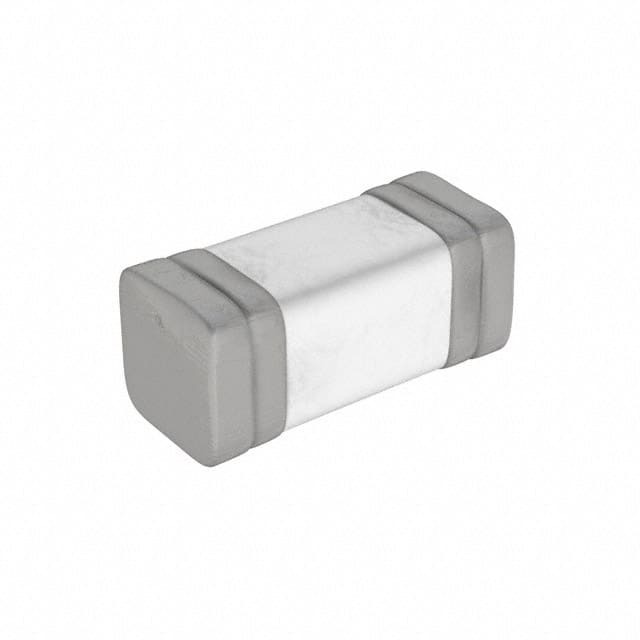

TR2/6125FF2-R

SKU: 31199

Manufacturer: Eaton

Fuse Subminiature Fast Acting 2A 125V SMD Solder Pad 2410 T/R cULus

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Subminiature
Acting	Fast
Application	Power Supply
Fuse Size (mm)	6.1 X 2.72
Current Rating (A)	2
Voltage Rating (V)	125
Maximum AC Voltage Rating (V)	125
Maximum DC Voltage Rating (V)	72
Breaking Capacity @ Rated Voltage (A)	50@72VDC
Typical Melting I2t (A²S)	1.67
Typical Cold Resistance (Ohm)	0.049
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	2.72
Length (mm)	6.1
Height (mm)	2.72
Terminal Form	Surface Mount
