SR-5H-4A-AP Eaton

SR-5H-4A-AP

SKU: 71349

Manufacturer: Eaton

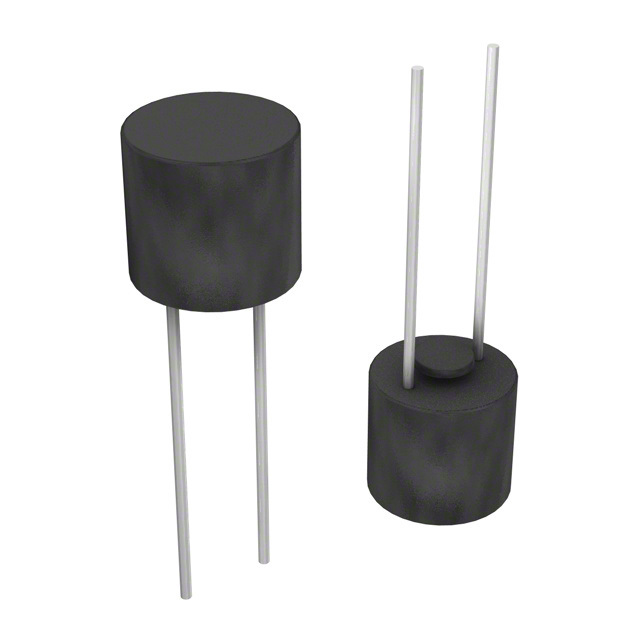

Fuse Subminiature Slow Blow Acting 4A 250V Radial 8.4 X 8.6mm Ammo CCC/PSE/SEMKO/VDE/cULus

Download sample

Request Free Samples

4080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Type	Subminiature
Acting	Slow Blow
Application	Motor Circuit
Fuse Size (mm)	8.4 X 8.6
Current Rating (A)	4
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum Power Dissipation (W)	1.4
Typical Melting I2t (A²S)	80
Typical Cold Resistance (Ohm)	0.015
Terminal Form	Radial
Terminal Pitch (mm)	5.08
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Ammo
Seated Plane Height (mm)	8.6
Product Diameter (mm)	8.4
Height (mm)	8.6
