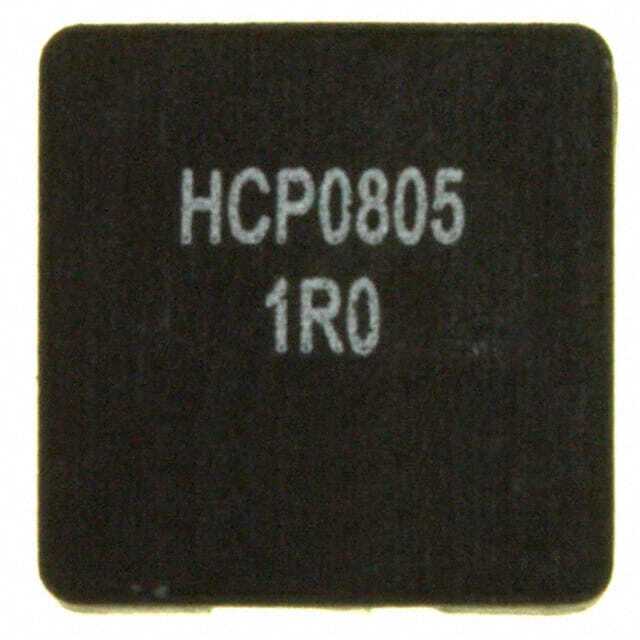

HCP0805-1R0-R

SKU: 75508

Manufacturer: Eaton

Inductor Power Shielded Wirewound 1uH/0.64uH 20% 100KHz Powdered Iron 14.5A 0.0058Ohm DCR T/R

480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Powdered Iron
Inductance (H)	1u(OCL)/0.64u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	14.5
Maximum Saturation Current (A)	22
Maximum DC Resistance (Ohm)	0.0058(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.9
Depth (mm)	7.6
