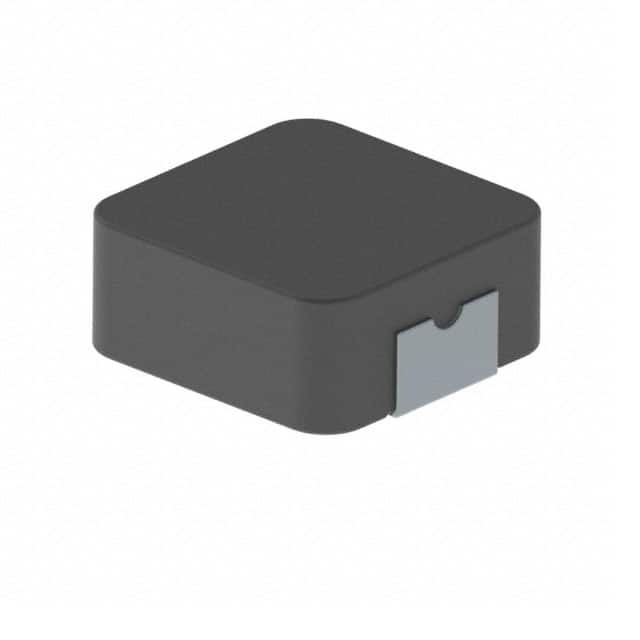

HCM1A0703V2-4R7-R

SKU: 68534

Manufacturer: Eaton

Inductor Power Shielded Wirewound 4.7uH/3uH 20% 100KHz Powdered Alloy 4A 0.0465Ohm DCR 2525 Automotive T/R

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Powdered Alloy
Inductance (H)	4.7u(OCL)/3u
Inductance Decrease Percentage @ Isat (%)	20
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	4
Maximum Saturation Current (A)	6.8
Maximum DC Resistance (Ohm)	0.0465
Minimum Self Resonant Frequency (Hz)	20M(Typ)
Number of Terminals	2
Case Size	2525
Operating Temperature-Min	-55
Operating Temperature-Max	155
Packing Method	Tape and Reel
Length (mm)	7.3
Terminal Form	Surface Mount
Depth (mm)	6.8
