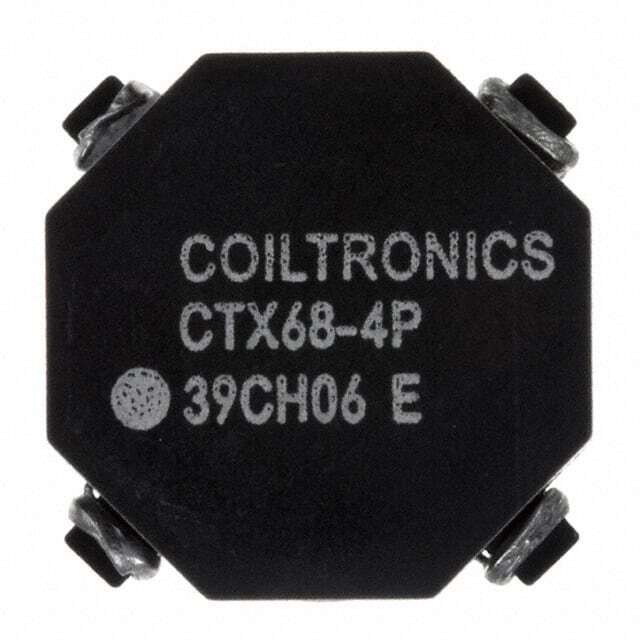

CTX68-4P-R

SKU: 11226

Manufacturer: Eaton

Inductor Power Wirewound 67.37uH/269.5uH 20% 100KHz Powdered Iron 1.1A/0.55A 0.238Ohm/0.952Ohm DCR T/R

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Powdered Iron
Inductance (H)	269.5u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.55
Maximum DC Resistance (Ohm)	0.238
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	13.97
Terminal Form	Surface Mount
Depth (mm)	13.97
