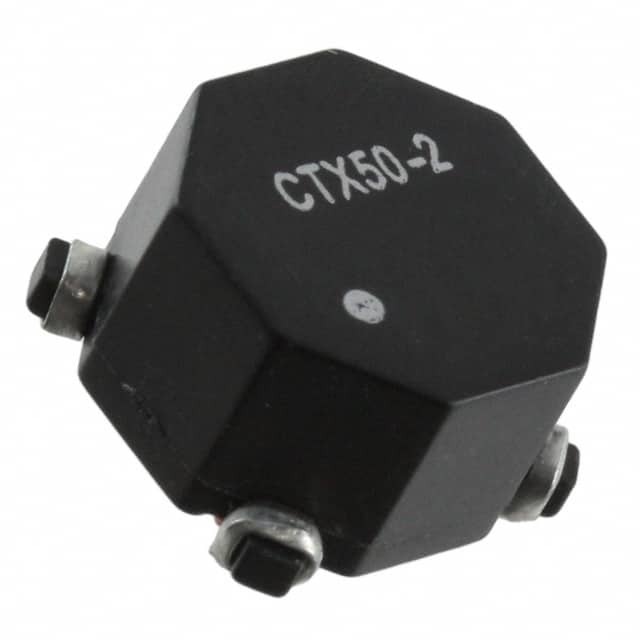

CTX50-2-R

SKU: 25449

Manufacturer: Eaton

Inductor Power Wirewound 51.18uH/204.73uH 20% 100KHz 0.92A/0.46A 0.21Ohm/0.839Ohm DCR T/R

800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Inductance (H)	51.18u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.92
Maximum DC Resistance (Ohm)	0.21
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	11.43
Terminal Form	Surface Mount
Depth (mm)	11.43
