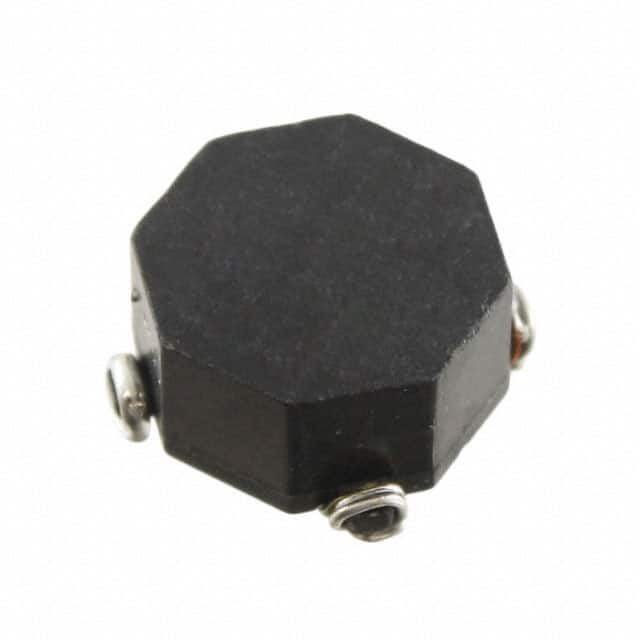

CTX5-4A-R

SKU: 11225

Manufacturer: Eaton

Inductor Power Wirewound 4.26uH/17.05uH 25% 100KHz Amorphous Metal 7.21A/3.61A 0.0085Ohm/0.0339Ohm DCR T/R

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Amorphous Metal
Inductance (H)	4.26u
Tolerance	25%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	7.21
Maximum Saturation Current (A)	3.21
Maximum DC Resistance (Ohm)	0.0085
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	13.97
Terminal Form	Surface Mount
Depth (mm)	13.97
