CTX100-1-52-R

SKU: 131646

Manufacturer: Eaton

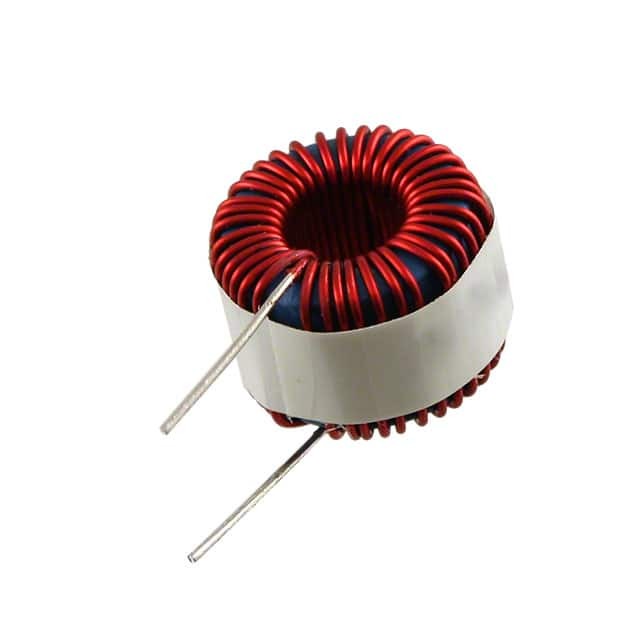

Inductor Power Toroid 100.4uH/100uH 20% 100KHz Powdered Iron 2.5A 0.106Ohm DCR RDL Bulk

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Toroid
Core Body Material	Powdered Iron
Inductance (H)	100.4u(OCL)/100u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2.5
Maximum Saturation Current (A)	2.4
Maximum DC Resistance (Ohm)	0.106
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	10.7
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Bulk
Product Diameter (mm)	15.5
