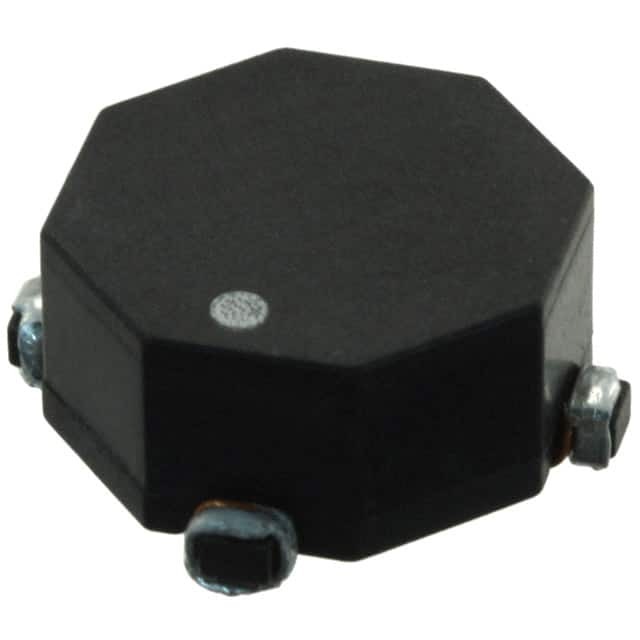

    CMS3-5-R

    SKU: 122181
    Manufacturer: Eaton
    Common Mode Chokes Dual 146uH 100kHz 3.1A 0.017Ohm DCR SMD T/R
    Download sample
    Request Free Samples
    3430 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.50.80.00
    Automotive No
    PPAP No
    Type Power Line
    Configuration Dual
    Number of Lines 2
    Inductance (H) 146u
    Leakage Inductance (H) 1.3u
    Test Frequency (Hz) 100k
    Maximum DC Current (A) 3.1
    Maximum DC Resistance (Ohm) 0.017(Typ)
    Withstand Voltage 300VDC
    Terminal Form Surface Mount
    Operating Temperature-Min -40
    Operating Temperature-Max 160
    Packing Method Tape and Reel
    Length (mm) 13.97
    Depth (mm) 13.97
    • CMS3-5-R Price
    • CMS3 Series
    • CMS3-5-R Datasheet
    • CMS3-5-R Application
    • CMS3-5-R Pdf
    • CMS3-5-R Pinout
    • CMS3-5-R Image
    • CMS3-5-R Picture
    • CMS3-5-R In Stock
    • CMS3-5-R Distributor
    • CMS3-5-R Common Mode Chokes
    • CMS3-5-R Eaton
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.50.80.00
    Automotive No
    PPAP No
    Type Power Line
    Configuration Dual
    Number of Lines 2
    Inductance (H) 146u
    Leakage Inductance (H) 1.3u
    Test Frequency (Hz) 100k
    Maximum DC Current (A) 3.1
    Maximum DC Resistance (Ohm) 0.017(Typ)
    Withstand Voltage 300VDC
    Terminal Form Surface Mount
    Operating Temperature-Min -40
    Operating Temperature-Max 160
    Packing Method Tape and Reel
    Length (mm) 13.97
    Depth (mm) 13.97
