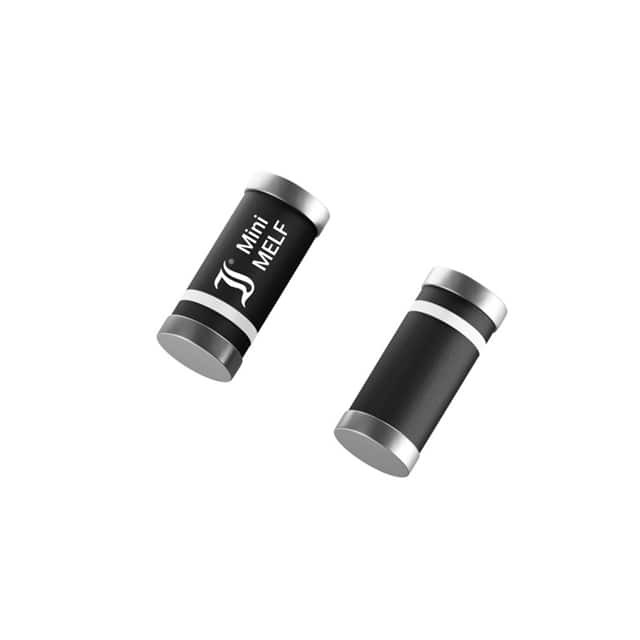

RGL1J

SKU: 87428

Manufacturer: Diotec Semiconductor AG

Rectifier Diode Switching 600V 1A 250ns 2-Pin Mini-MELF T/R

2690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	1@Ta=75C
Peak Non-Repetitive Surge Current (A)	25
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	250
Operating Temperature-Min	-50
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Original Package	Mini-MELF
Pin Count	2
Standard Package Method	Mini-MELF
Diameter	1.6
Terminal Form	Surface Mount
Package Length	3.5
PCB changed	2
