ESD3Z5V0

SKU: 75365

Manufacturer: Diotec Semiconductor AG

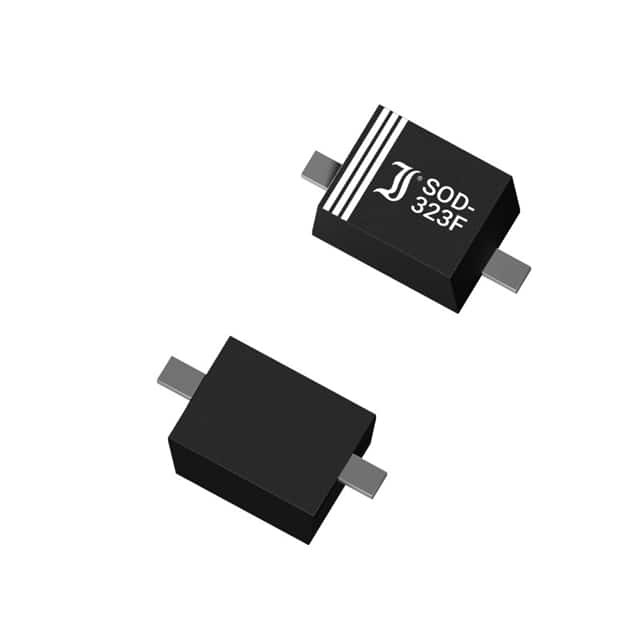

ESD Suppressor TVS 5V 2-Pin SOD-323 T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Number of Elements per pcs	1
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	8.8
Maximum Clamping Voltage (V)	14.5
Maximum Peak Pulse Current (A)	24
Maximum Leakage Current (uA)	10
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	350
Operating Temperature-Min	-50
Operating Temperature-Max	125
Supplier Temperature Grade	Commercial
Original Package	SOD-323
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1
Package Length	1.7
Package Width	1.25
