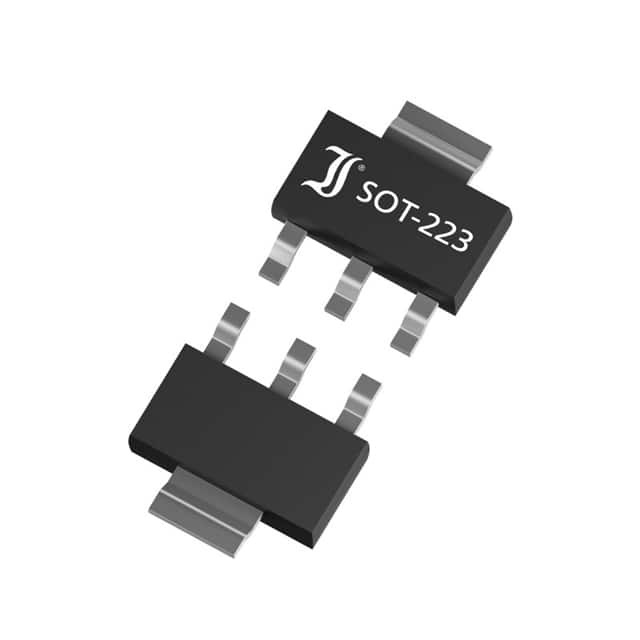

BCP56-10

SKU: 32222

Manufacturer: Diotec Semiconductor AG

Trans GP BJT NPN 80V 1A 2000mW 4-Pin(3+Tab) SOT-223 Box

26860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.5@50mA@500mA
Maximum DC Collector Current (A)	1
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	63@150mA@2V
Maximum Power Dissipation (mW)	2000
Maximum Transition Frequency (MHz)	100(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Box
Supplier Temperature Grade	Commercial
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Length	6.5
Package Width	3.5
PCB changed	3
