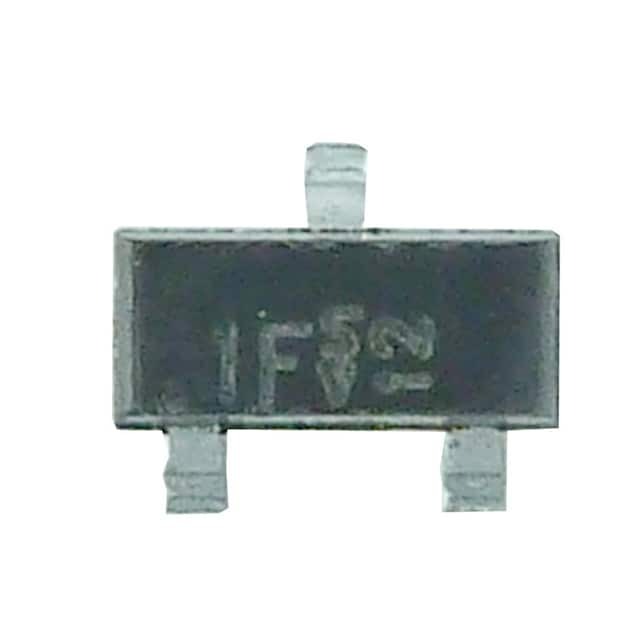

BAV199

SKU: 10861

Manufacturer: Diotec Semiconductor AG

Rectifier Diode Small Signal Switching 85V 0.215A 3000ns 3-Pin SOT-23 T/R

557670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Small Signal Switching Diode
Maximum DC Reverse Voltage (V)	75
Configuration	Dual Series
Peak Reverse Repetitive Voltage (V)	85
Maximum Continuous Forward Current (A)	0.215
Peak Non-Repetitive Surge Current (A)	2
Peak Forward Voltage (V)	1.25@0.15A
Peak Reverse Current (uA)	0.005
Maximum Power Dissipation (mW)	350
Peak Reverse Recovery Time (ns)	3000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Length	2.9
Package Width	1.3
PCB changed	3
