BA159

SKU: 10835

Manufacturer: Diotec Semiconductor AG

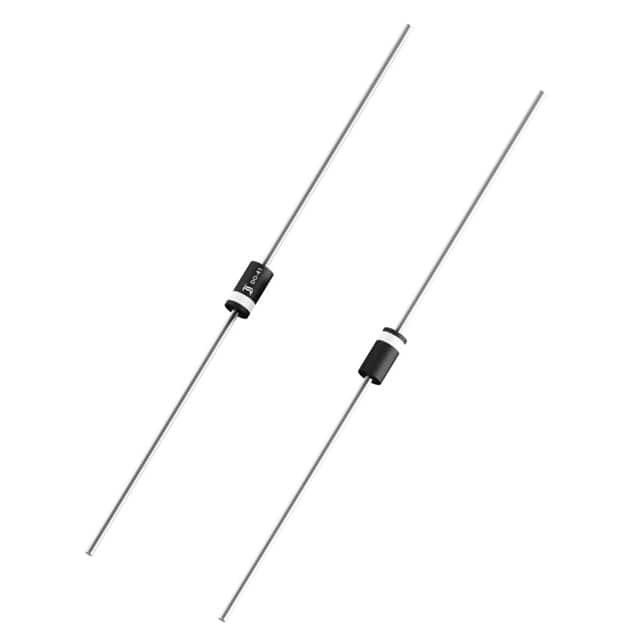

Rectifier Diode Switching 1KV 1A 300ns 2-Pin DO-41 Ammo

29600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Maximum Continuous Forward Current (A)	1@Ta=75C
Peak Non-Repetitive Surge Current (A)	40
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	300
Operating Temperature-Min	-50
Operating Temperature-Max	150
Packing Method	Ammo
Supplier Temperature Grade	Commercial
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.6
Terminal Form	Through Hole
Package Length	5.1
PCB changed	2
