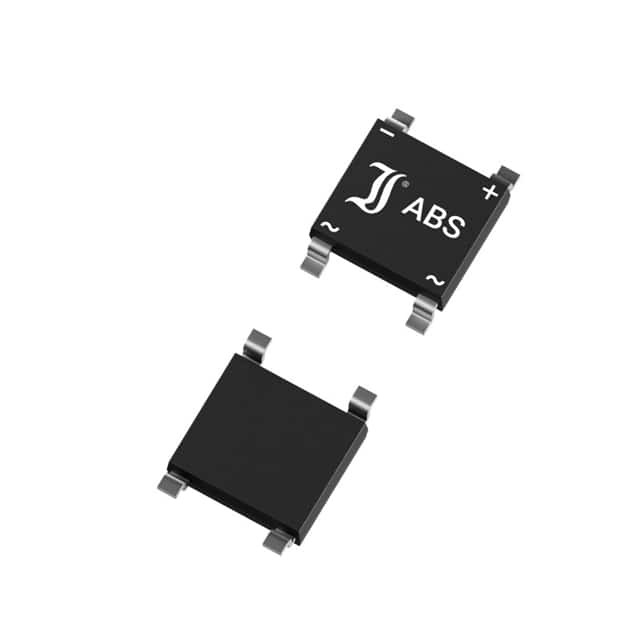

ABS4

SKU: 109267

Manufacturer: Diotec Semiconductor AG

Diode Rectifier Bridge Single 400V 1A 4-Pin Case ABS T/R

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Peak Average Forward Current (A)	1@Ta=40C
Peak RMS Reverse Voltage (V)	280
Peak Non-Repetitive Forward Surge Current (A)	30
Peak Forward Voltage (V)	1.1@0.8A
Peak Reverse Current (uA)	5
Operating Temperature-Min	-50
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Case ABS
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.4
Package Length	5
Package Width	4.4
