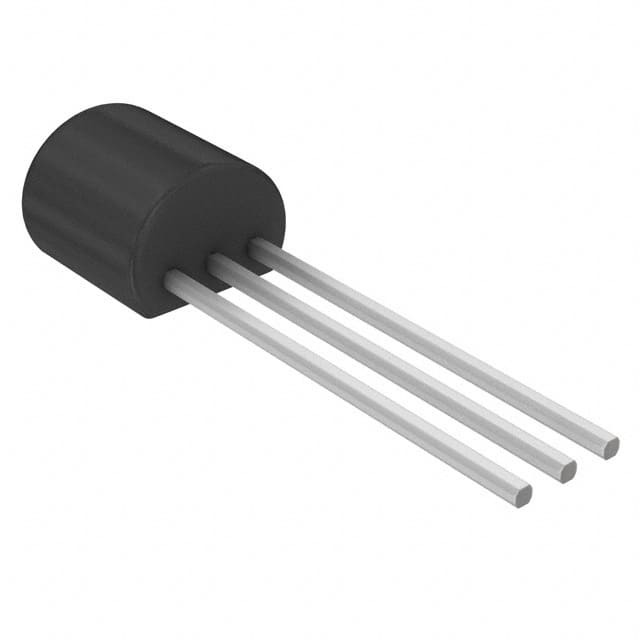

2N5551

SKU: 7572

Manufacturer: Diotec Semiconductor AG

Trans GP BJT NPN 160V 0.6A 625mW 3-Pin TO-92 Ammo

33460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	180
Collector-Emitter Voltage-Max (V)	160
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1@5mA@50mA
Maximum Collector-Emitter Saturation Voltage (V)	0.2@5mA@50mA
Maximum DC Collector Current (A)	0.6
Maximum Collector Cut-Off Current (nA)	50
Minimum DC Current Gain	30@50mA@5V
Maximum Power Dissipation (mW)	625
Maximum Transition Frequency (MHz)	300
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Ammo
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
