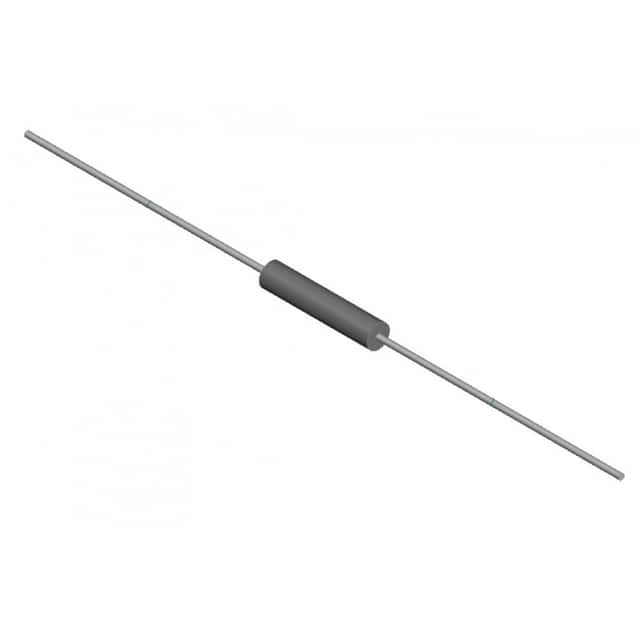

2CL73A

SKU: 7674

Manufacturer: Diotec Semiconductor AG

Rectifier Diode Switching 12KV 0.005A 80ns 2-Pin T/R

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	12000
Maximum Continuous Forward Current (A)	0.005
Peak Non-Repetitive Surge Current (A)	0.5
Peak Forward Voltage (V)	45@0.01A
Peak Reverse Current (uA)	2
Peak Reverse Recovery Time (ns)	80
Operating Temperature-Min	-40
Operating Temperature-Max	120
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	2
Diameter	2.5
Terminal Form	Through Hole
Package Length	10
