1N5370B

SKU: 5626

Manufacturer: Diotec Semiconductor AG

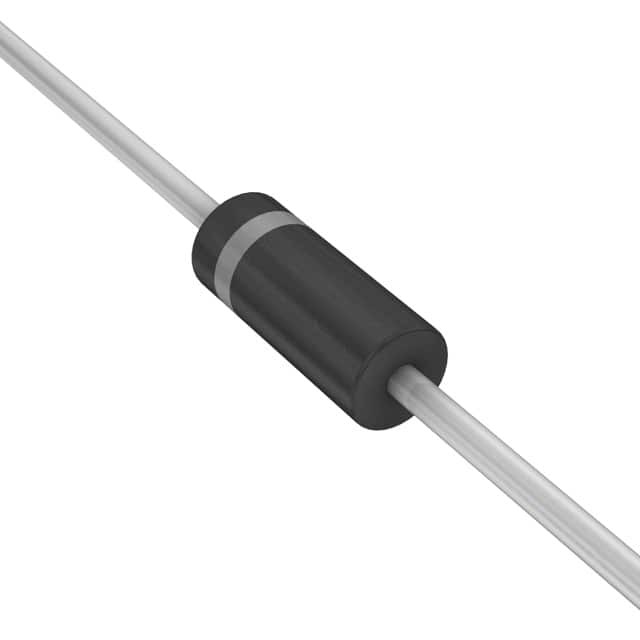

Zener Diode Single 56V 5% 35Ohm 5000mW 2-Pin DO-201 Ammo

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	56
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	5000
Test Current (mA)	20
Maximum Reverse Leakage Current (uA)	0.5
Maximum Regulator Current (mA)	85@Ta=50C
Maximum Zener Impedance (Ohm)	35
Operating Temperature-Min	-50
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Ammo
Original Package	DO-201
Pin Count	2
Standard Package Method	DO-201
Diameter	4.5
Terminal Form	Through Hole
Package Length	7.5
PCB changed	2
