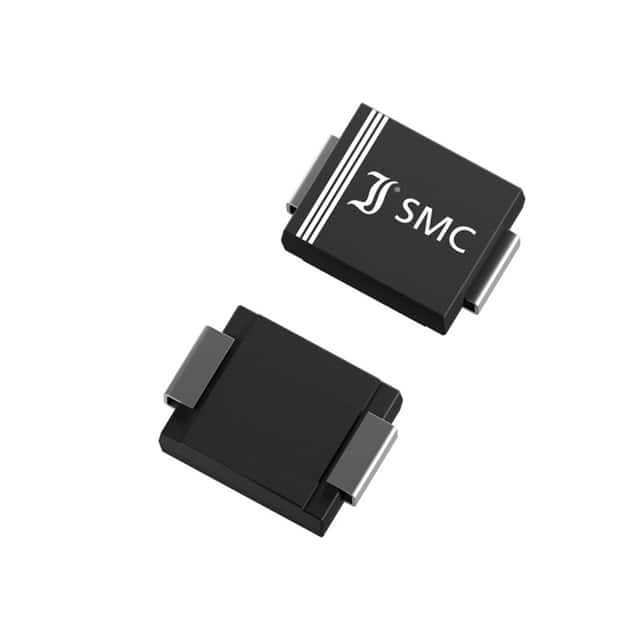

1.5SMCJ14A

SKU: 9850

Manufacturer: Diotec Semiconductor AG

TVS Diode Single Uni-Dir 14V 1.5KW 2-Pin SMC T/R

1530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	15.6
Maximum Clamping Voltage (V)	23.2
Maximum Reverse Stand-Off Voltage (V)	14
Maximum Peak Pulse Current (A)	64.7
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-50
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.1
Package Length	7.5
Package Width	5.8
PCB changed	2
