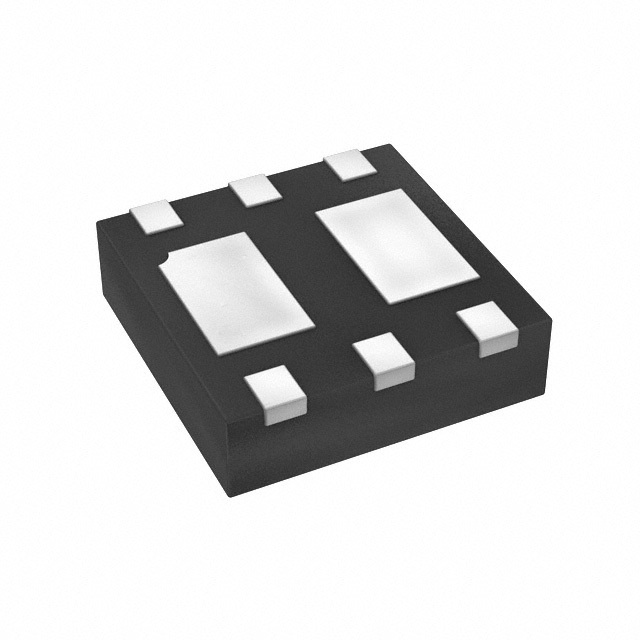

ZXTP56020FDBQ-7

SKU: 24241

Manufacturer: Diodes Incorporated

Trans GP BJT PNP 20V 2A 2470mW Automotive 6-Pin UDFN EP T/R

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	Yes
PPAP	Yes
Type	PNP
Product Category	Bipolar Small Signal
Configuration	Dual
Number of Elements per pcs	2
Collector Base Voltage-Max (V)	20
Collector-Emitter Voltage-Max (V)	20
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.25@200mA@2A
Maximum Collector-Emitter Saturation Voltage (V)	0.39@200mA@2A
Maximum DC Collector Current (A)	2
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	100@2A@2V
Maximum Power Dissipation (mW)	2470
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	UDFN EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.57
Package Length	2
Package Width	2
