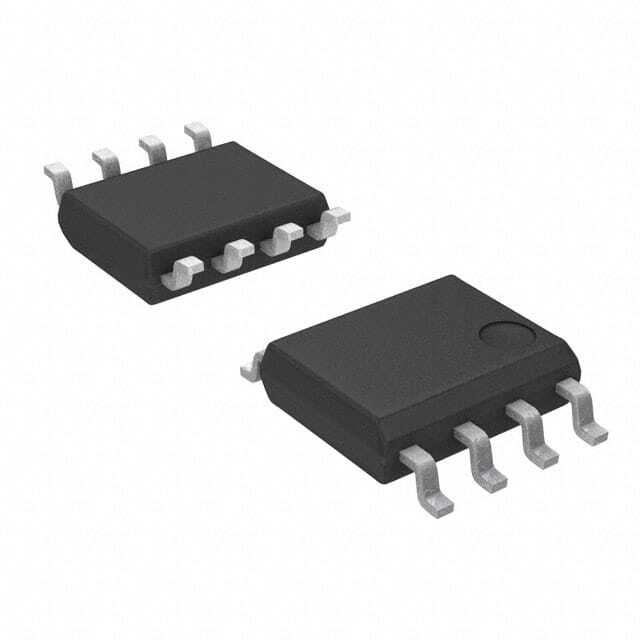

ZXMS6004N8Q-13

SKU: 22593

Manufacturer: Diodes Incorporated

Current Limit SW 1-IN 1-OUT 0V to 5.5V 2.2A Automotive 8-Pin SO T/R

3490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Number of Inputs	1
Number of Outputs	1
Maximum Output Current (A)	2.2(Typ)
Minimum Input Voltage (V)	0
Maximum Input Voltage (V)	5.5
Switch On Resistance (mOhm)	400
Maximum Power Dissipation (mW)	1650
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.9
Package Width	3.9
PCB changed	8
