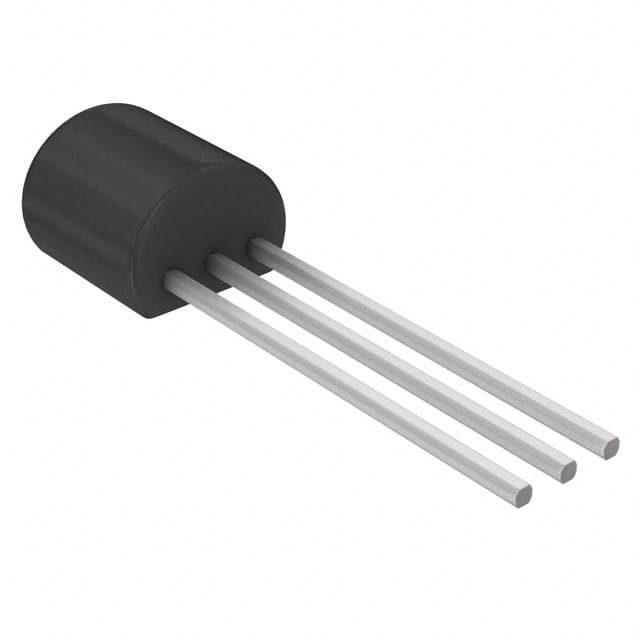

ZTX618

SKU: 100386

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 20V 3.5A 1000mW 3-Pin E-Line

6020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	20
Collector-Emitter Voltage-Max (V)	20
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	-55 to 200
Maximum Base Current (A)	0.5
Maximum Base Emitter Saturation Voltage (V)	1.05@50mA@3.5A
Maximum Collector-Emitter Saturation Voltage (V)	0.15@10mA@1A
Maximum DC Collector Current (A)	3.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	300@200mA@2V
Maximum Power Dissipation (mW)	1500
Maximum Transition Frequency (MHz)	140(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	200
Original Package	E-Line
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	3.9
Package Length	4.57
Package Width	2.28
PCB changed	3
