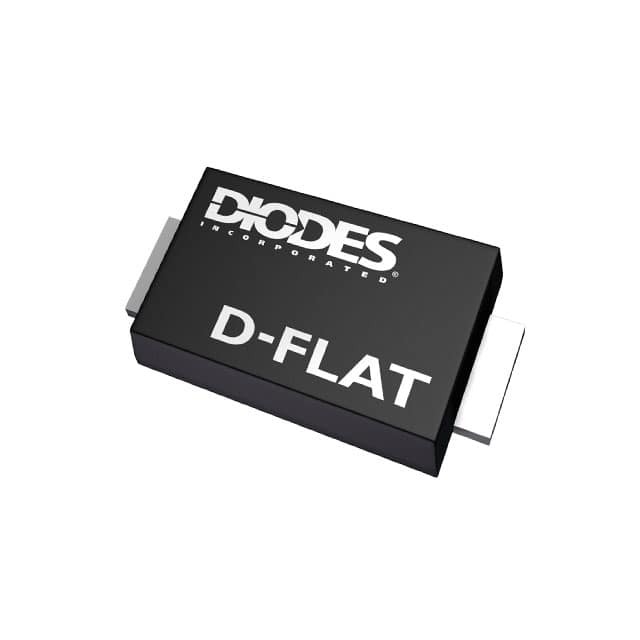

US1JDFQ-13

SKU: 80663

Manufacturer: Diodes Incorporated

Rectifier Diode Switching 600V 1A 75ns Automotive 2-Pin D-FLAT T/R

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Switching Diode
Maximum DC Reverse Voltage (V)	600
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	1
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1.7
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	75
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	D-FLAT
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	4.6(Max)
Package Width	2.95(Max)
PCB changed	2
