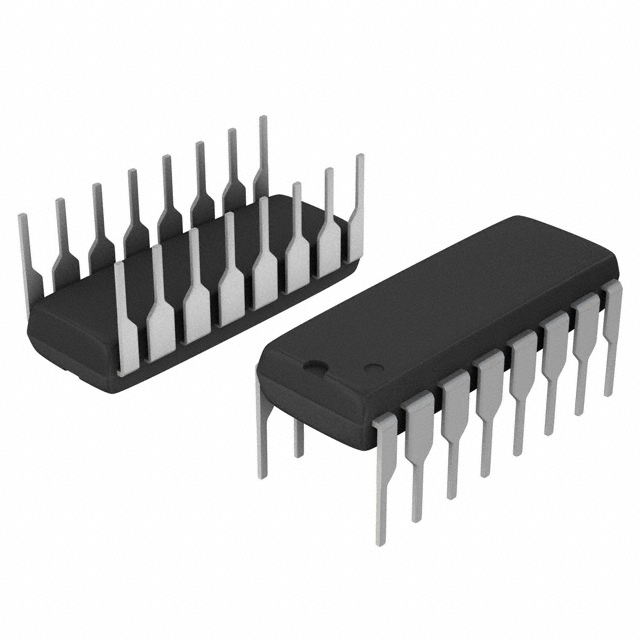

ULN2004AD16-U

SKU: 100203

Manufacturer: Diodes Incorporated

Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube

3070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Configuration	Array 7
Number of Elements per pcs	7
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	30
Maximum Continuous DC Collector Current (A)	0.5
Maximum Collector-Emitter Saturation Voltage (V)	1.1@250uA@100mA
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	19.1
Package Width	6.35
PCB changed	16
