UDZS18B

SKU: 130304

Manufacturer: Diodes Incorporated

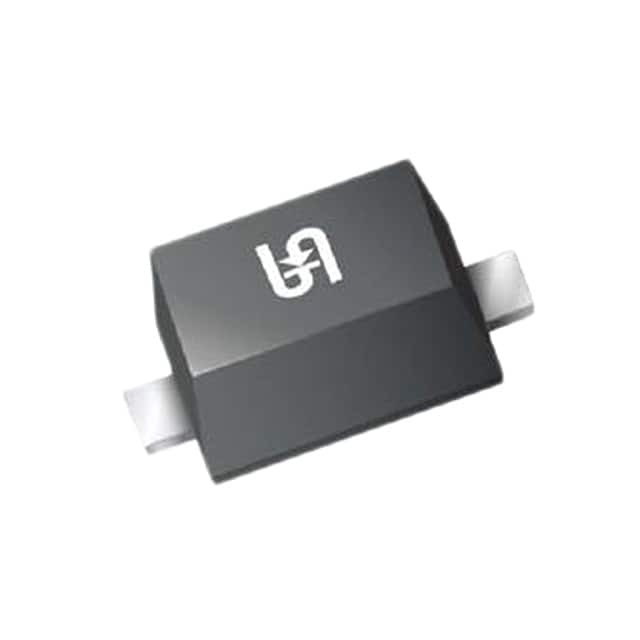

Zener Diode Single 18V 2% 65Ohm 400mW 2-Pin SOD-323

6890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	18
Zener Voltage Tolerance	2%
Maximum Power Dissipation (mW)	400
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	0.1
Average Rectified Forward Current (A)	0.2
Maximum Zener Impedance (Ohm)	65
Maximum Power Dissipation @ 25C (mW)	400
Operating Temperature-Min	-55
Operating Temperature-Max	150
Typical Voltage Temperature Coefficient	14.2mV/K
Original Package	SOD-323
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	1.8(Max)
Package Width	1.35(Max)
