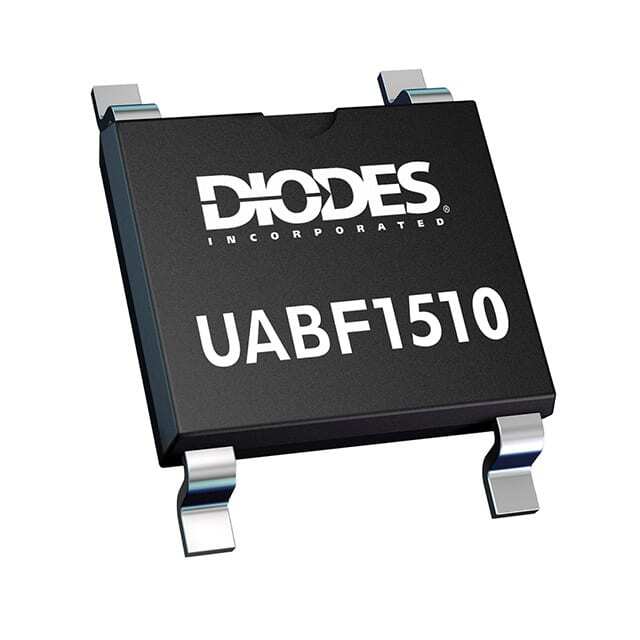

UABF1510-13

SKU: 149830

Manufacturer: Diodes Incorporated

Rectifier Bridge Diode Single 1KV 1.5A 4-Pin SOP-A T/R

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Diode Type	Fast Recovery Rectifier
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Peak Average Forward Current (A)	1.5
Peak RMS Reverse Voltage (V)	700
Peak Non-Repetitive Forward Surge Current (A)	50
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	160
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Original Package	SOP-A
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	5.3(Max)
Package Width	4.6(Max)
