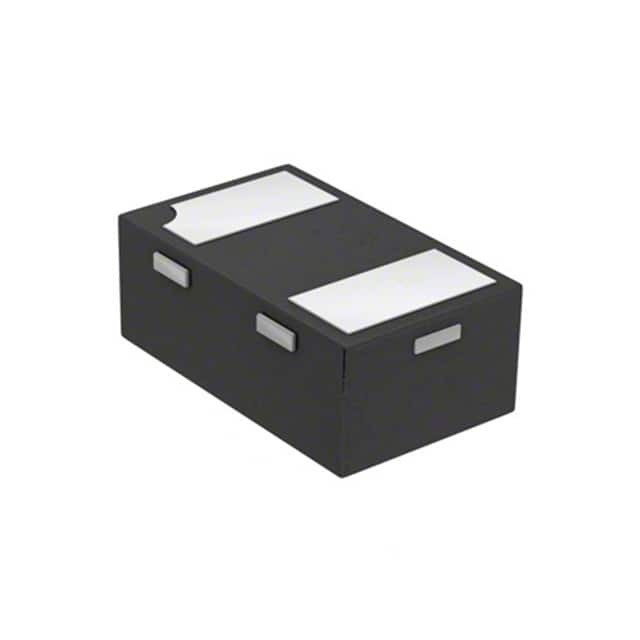

TPD6V8LP-7

SKU: 73567

Manufacturer: Diodes Incorporated

TVS Diode Single Uni-Dir 5V 85W 2-Pin DFN T/R

455680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.4
Maximum Clamping Voltage (V)	19
Maximum Reverse Stand-Off Voltage (V)	5
Maximum Peak Pulse Current (A)	4.5
Maximum Reverse Leakage Current (uA)	0.5
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	85
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.47
Package Length	1
Package Width	0.6
PCB changed	2
