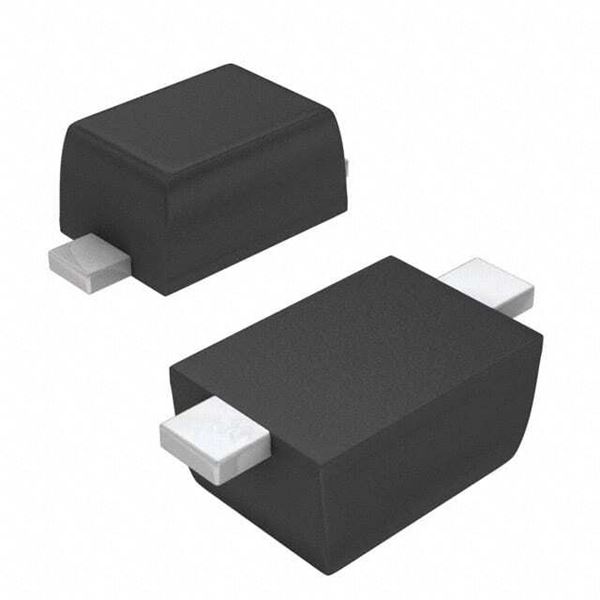

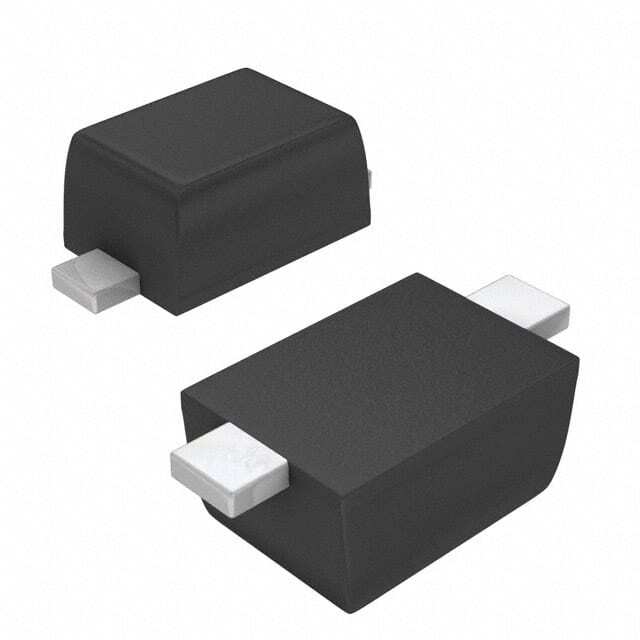

T6V0S5

SKU: 142308

Manufacturer: Diodes Incorporated

Diode TVS Single Uni-Dir 6V 260W 2-Pin SOD-523 T/R

550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.8
Maximum Clamping Voltage (V)	22.4
Maximum Reverse Stand-Off Voltage (V)	6
Maximum Forward Voltage (V)	0.9
Maximum Peak Pulse Current (A)	13
Maximum Reverse Leakage Current (uA)	0.05
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	260(Typ)
Capacitance Value (pF)	90(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOD-523
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	0.7(Max)
Package Length	1.3(Max)
Package Width	0.9(Max)
PCB changed	2
