RDBF310-13

SKU: 134400

Manufacturer: Diodes Incorporated

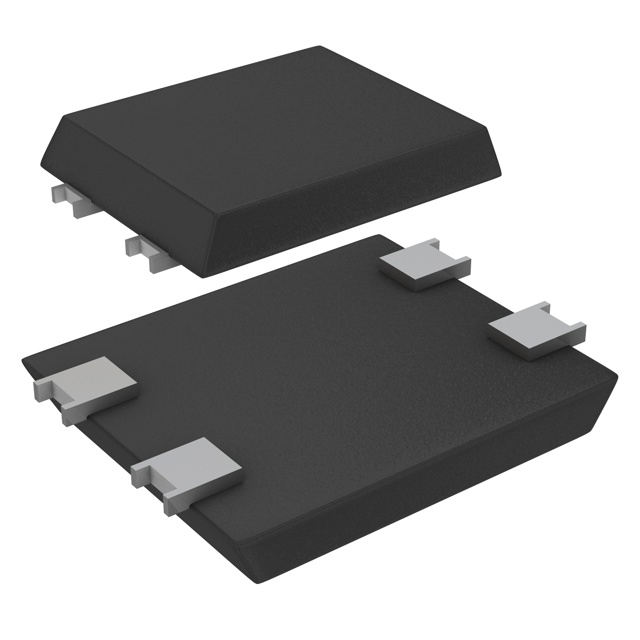

Diode Rectifier Bridge Single 1KV 3A 4-Pin Case DBF T/R

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Diode Type	Fast Recovery Rectifier
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Peak Average Forward Current (A)	3
Peak RMS Reverse Voltage (V)	700
Peak Non-Repetitive Forward Surge Current (A)	100
Peak Forward Voltage (V)	1.3@2.5A
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Original Package	Case DBF
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.38(Max)
Package Length	6.85(Max)
Package Width	8.2(Max)
