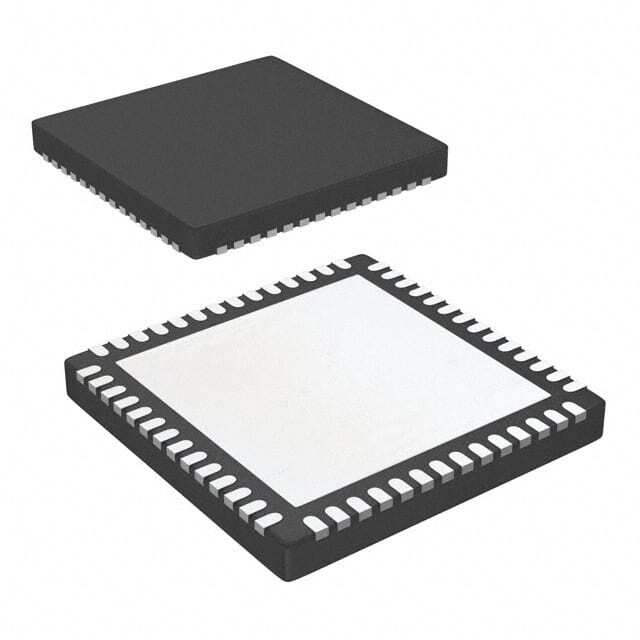

PI6LC48S25BZBBIE

SKU: 84619

Manufacturer: Diodes Incorporated

Clock Generator 10MHz to 156.25MHz-IN 312.5MHz-OUT 56-Pin TQFN EP Tray

1010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Number of Outputs per Chip	11
Clock Input Frequency (MHz)	10 to 156.25
Maximum Output Frequency (MHz)	312.5
Typical Duty Cycle (%)	55(Max)
Input Logic Level	CMOS
Output Logic Level	LVDS
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.63
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Maximum Supply Current (mA)	50
Original Package	TQFN EP
Pin Count	56
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	8
Package Width	8
PCB changed	56
